Navi: Buttons left/right (jQuery)

Direction: right - left. The menu consists of buttons on the left and right.

Version: V1.0
Update:

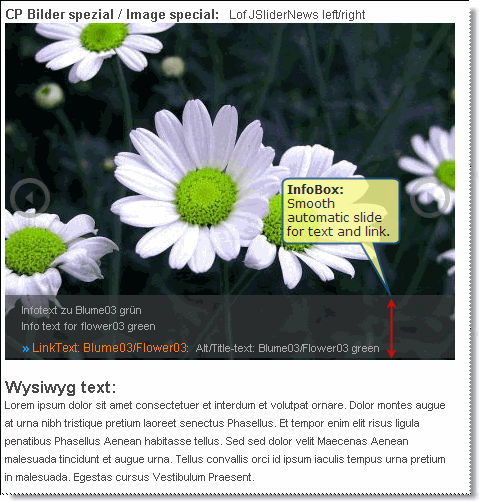

Frontend output:

Backend CP image special:

Description:

  • This example is used for large images the aspect ratio of 4:3. The width provides 450px.

These parameters are set in the template

  • large image:
    • INI: width = 450, height = 350
    • JS: mainWidth :450

and the CSS file.

In the CP the large image must be entered into the “thumbnail” field, otherwise no picture was generated.

InfoBox: * In the CP will be determined by the switch “effect 1”, if opacity is active. The text message is “displayed animated” when the switch “effect 2” is set (only possible for opacity).

  • In the info text URL can be merged to each picture.
  • With the switch “hide caption for thumbnails” the output of the InfoBox is set to off.

As shown in the backend graphic above, almost all the setting in the CP are moved to the template. So possible input errors in the CP can be avoided.

Template:

File: template/inc_cntpart/imagespecial/Lof-JSliderNews-LeftRight.tmpl

  • For IE9:
    	isPreloaded     : false,   // for IE9 sorry


Lof-JSliderNews-LeftRight.tmpl

<!--IMAGE_SETTINGS_START//-->
; this is formatted like WIN.INI
; please: do not use comments for value lines
; settings will overwrite CP settings
width        = 450
height        = 350
width_zoom    = 450
height_zoom    = 450
col            = 1
;space        = 10
zoom        = 1
lightbox    = 0
;nocaption    = 0
; 0 = no center, 1 = horizontal/vertical, 2 = horizontal, 3 = vertical
center        = 0
crop        = 0
crop_zoom    = 1
;fx1            = 0
;fx2            = 0
;fx3            = 0
<!--IMAGE_SETTINGS_END//-->

<!--IMAGES_HEADER_START//-->

[TITLE]<h3 style="float:left; padding-right:10px;">{TITLE}</h3>[/TITLE]
[SUBTITLE]<span style="font-family:arial; font-size:110%;">{SUBTITLE}</span>[/SUBTITLE]

<div class="lof-slidecontent">
    <div class="lof-main-outer">
        <div class="lof-previous" href="" onclick="return false">Previous</div>
          <ul class="lof-main-wapper">
<!--IMAGES_HEADER_END//-->


<!--IMAGES_ENTRY_START//-->
            <!-- {IMAGE_NAME} -{IMGID} -->
            <li>
                <img src="{THUMB_REL}" title="{TITLE}" height="{THUMB_HEIGHT_MAX}" width="{THUMB_WIDTH_MAX}" alt="{ALT}" />
                [CAPTION]
                <div class="lof-main-item-desc" style="z-index:1;">
                    [TITLE]<!--<h3>{TITLE}</h3>//-->[/TITLE]

                    [INFOTEXT]{INFOTEXT}[/INFOTEXT]
                    [TITLE]<p>[IMAGE_URL]<a href="{IMAGE_URL}" target="_blank"><b>&raquo;</b> [/IMAGE_URL]{TITLE}[IMAGE_URL]</a>:[/IMAGE_URL] &nbsp;{ALT}</p>[/TITLE]
                </div>
                [/CAPTION]
                <div class="lof-nav-item">
                    <img src="{IMAGE_REL}" />
                </div>
            </li>

    <!--

        Thumbnail image: {THUMB_NAME}
          Title text:       {TITLE}
          Caption text:     {CAPTION}   // Same like TITLE if no |Alt text is available
          Alt text:         {ALT}       // The same like CAPTION text
          ID/Hash/Ext:      {THUMB_ID}/{THUMB_HASH}/{THUMB_EXT}
          relative:         {THUMB_REL}
          absolute:         {THUMB_ABS}
          height/width:     {THUMB_HEIGHT}px/{THUMB_WIDTH}px
          height/width max: {THUMB_HEIGHT_MAX}px/{THUMB_WIDTH_MAX}px
          columns:          {THUMB_COLUMNS}

        If you are not sure wrap zoomed image:
        [ZOOM]
        Zoomed (big) image: {IMAGE_NAME}
          ID/Hash/Ext:      {IMAGE_ID}/{IMAGE_HASH}/{IMAGE_EXT}
          relative:         {IMAGE_REL}
          absolute:         {IMAGE_ABS}
          height/width:     {IMAGE_HEIGHT}px/{IMAGE_WIDTH}px
        [/ZOOM]

        Image URL: {IMAGE_URL}, Target: {IMAGE_TARGET}

        [EFFECT_1]Yes Effect 1[/EFFECT_1]
        [EFFECT_2]Yes Effect 2[/EFFECT_2]
        [EFFECT_3]Yes Effect 3[/EFFECT_3]

    //-->
<!--IMAGES_ENTRY_END//-->


<!--IMAGES_ENTRY_SPACER_START//--><!--IMAGES_ENTRY_SPACER_END//-->


<!--IMAGES_ROW_SPACER_START//--><!--IMAGES_ROW_SPACER_END//-->


<!--IMAGES_FOOTER_START//-->
        </ul>
        <div class="lof-next" href="" onclick="return false">Next</div>
    </div>
</div>
[TEXT]{TEXT}[/TEXT]
<!-- CSS: {TEMPLATE}lib/lofslider/css/lofslider-style01.css -->
<!-- CSS:
    /* Hide the nav item element by default - we use JS to move it at right place */
    .lof-nav-item {display:none;}
-->
<!-- JS: dimensions.min --><!-- JS: easing.min --><!-- JS: mousewheel.min --><!-- JS: {TEMPLATE}lib/lofslider/lofslider01.js -->
<!-- JS:

    // build lofslider navigational element
    jQuery(document).ready(function(){

        // iterate all nav items "div.lof-nav-item
        $('ul.lof-main-wapper').each(function(){

            // Buttons left/right
            var buttons     = {
                previous:$('.lof-previous') ,
                next:$('.lof-next')
            };

            var lof_options = {
                interval        : 4000,
                easing          : 'easeInOutSine',
                duration        : 1000,
                direction       :'[EFFECT_1]opacity[/EFFECT_1]',  // 'opacity'
                auto            : false,
                maxItemDisplay  : 3,
                startItem       : 0,
                navPosition     : 'horizontal', // horizontal
                navigatorHeight : 32,
                navigatorWidth  : 80,
                mainWidth       :450,
                isPreloaded     : false,   // for IE9 sorry
                buttons         : buttons,
                mainItemDesc    : '[EFFECT_2].lof-main-item-desc[/EFFECT_2]'  // '.lof-main-item-desc' if set, smooth output of Desc text in direction mode = "opacity" +KH 08.05.11
            };

            $(this).parent().parent().lofJSidernews(lof_options);
        });

    });

-->
<!--IMAGES_FOOTER_END//-->


CSS and JavaScript:
